TRUCK MANUFACTURER

1/4

TRUCK MANUFACTURER

• Final Assembly Line
• X458 Side-By-Side Chain-On-Flat Conveyor
• Above the Floor Construction with Integrated Cover Plates
• Shallow Pit for Head and Tails Sections Only
• (6) Station Conveyor with Front and Rear Dollies

for Product Assembly
• 16,500 Pound Capacity Per Station

• 2 JPH at 1.65 FPM

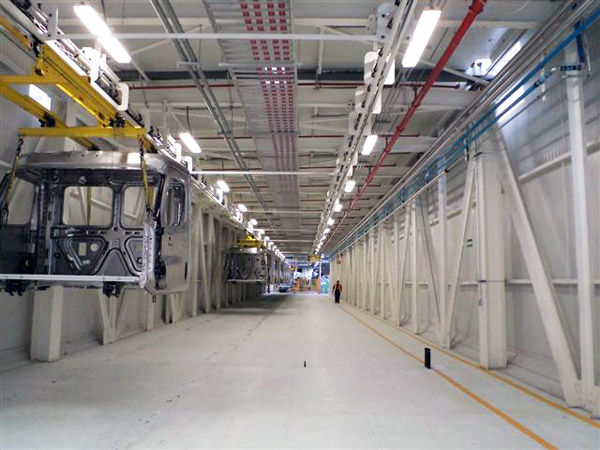

TRUCK MANUFACTURER

• Belt-Style Cab Load Droplifter
• Roll-Up Style Belt Drive System.

No Counterweight Required
• Integrates P&F Drop Rail That Does Not Require

a Pusher Assist Device
• 10 JPH
• 4,100 Pound Lift Load Capacity

1/4

HEAVY TRUCK MANUFACTURER

• SSI Heavy-Duty TracVeyor® System
• SSI Heavy-Duty ManVeyor™ System for Ergonomics
• Custom Heavy-Duty Unload Lifts
• Towable Kit Cart with Utility Hook-Ups
• 550 Lineal Feet

• Live Load: 185,000 Pounds

1/4

AUTOMOTIVE TRUCK FRAME MANUFACTURER

• E-Coat Delivery and Bake Oven Conveyors
• 24 Custom Heavy-Duty Power Roll Beds
• 4 CC5 Dual Strand Conveyors
• 2 S6910 Dual Strand Bake Oven Conveyors
• 2 Vertical Lifts to Bottom-Entry Bake Oven

• 6 Pneumatic Popup Table

• Pneumatic Shuttle Transfer

• Interface with Programmable Hoist Dip System

• 10 Frames Per Pallet = 8,000-lb Live Load

• 130 Frames Per Hour Production Capacity

• 560 Lineal Feet

1/3

HEAVY-DUTY TRUCK MANUFACTURER

• 343 Overhead Power & Free Conveyor
• Storage/Sort/Delivery System
• 1,800 Lineal Feet
• Live Load: 500 Pounds
• 10 Jobs Per Hour
• Drop Lifters for Load & Unload
• 85 Carriers
• 9 Months - Purchase Order to Start-Up

1/3

AUTOMOTIVE TRUCK MANUFACTURER

• Dual Strand Flat Top Conveyor
• Redundant Drive Design
• 18” Pitch Heavy Duty Chain Design
• 120 Lineal Feet
• Live Load: 50,000 Pounds Live Load
• 100% Shop Set-up & Testing

1/3

OVER-THE-ROAD TRAILER MANUFACTURER

• Trailer Assembly and Paint System
• Custom Built Automated Assembly Jig
• (3) Different Types of Conveyors - Dual Strand,

Automated Transfer Cart and Chain-On-Flat
• 730 Lineal Feet

• 10 JPH

• 12,750 Pound Product Load

1/3

REFRIGERATED TRAILER MANUFACTURER

• 21 Conveyors
• Multiple Type Conveyors - 2-Strand Conveyors,

3-Strand Conveyors, Chain-On-Flat Conveyors,

Independently Powered Transfer Carts, Roller

Conveyor
• Product Size: 57' Long x 8.5' Wide x 8' Tall
• Live Load: 25,000 Pounds
• 2,300 Lineal Feet
• 2 Jobs Per Hour

• Remote Wireless Controls

1/3

INTERNATIONAL HEAVY TRUCK MANUFACTURER

• Entire Assembly Department
• 23 Conveyors
• Multiple Conveyor Types - Chain-On-Flat, Slat

Conveyor, Flat Top Conveyor, Tracveyor®,

Dual Strand Conveyor, Roller Conveyor,

Decline/Deramp Conveyor, 343 Overhead

Power & Free Conveyor
• Live Loads from 5,000 to 27,000 Pounds
• 12 Jobs Per Hour
• 4,790 Lineal Feet

1/7

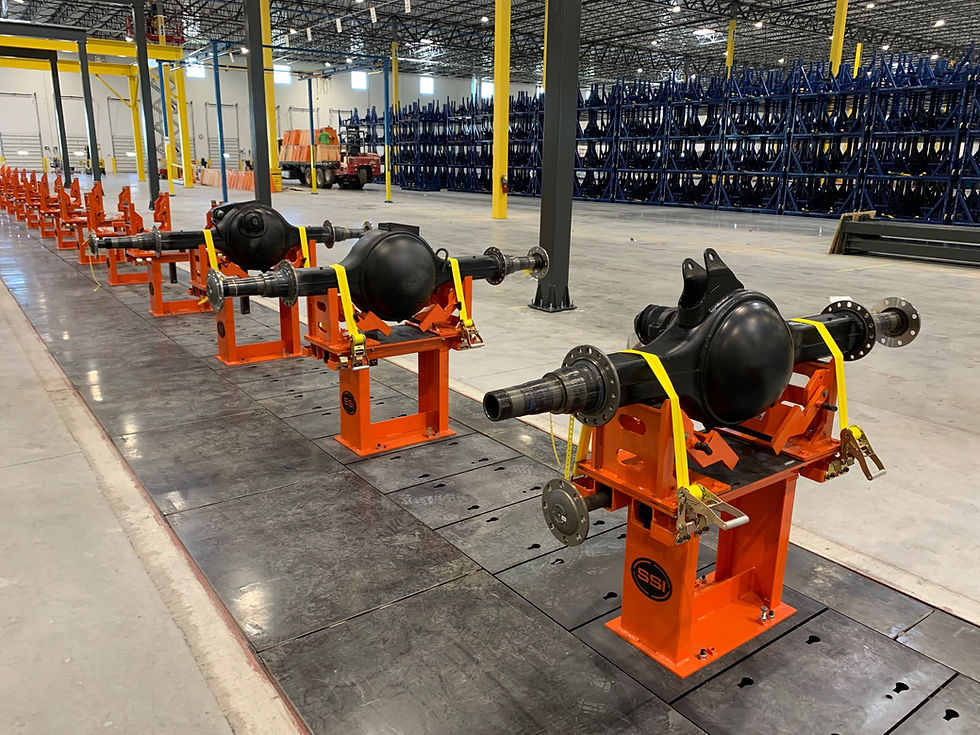

TRUCK AXLE MANUFACTURER

• Heavy-Duty in floor flat top conveyor
• Axle Dress Conveyor for JIT delivery to major truck manufacturer
• 177’3” Sprocket centers - 367’6” chain length
• 23 Live workstations
• Adjustable job centers with keyhole top-plates
• 3000lbs product
• 32 JPH
• 49 Universal axle stanchions suitable for front or rear axles
• System produces axles for numerous truck models
